N-channel JFET with 400V drain-source breakdown voltage and 120mA continuous drain current. Features 25 Ohm drain-source resistance and 1W power dissipation. Operates from -55°C to 150°C, with a TO-92 through-hole package. Includes 10ns turn-on delay, 15ns turn-off delay, and 20ns fall time.
PackageTO-92
MountingThrough Hole
PolarityN-CHANNEL
Power1W
Quick Jump:
Technical Specifications
Microchip DN2540N3-G technical specifications.
General
Package/Case
TO-92
Continuous Drain Current (ID)
120mA
Drain to Source Breakdown Voltage
400V
Drain to Source Resistance
25R
Drain to Source Voltage (Vdss)
400V
Fall Time
20ns
Gate to Source Voltage (Vgs)
20V
Height
5.33mm
Input Capacitance
300pF
Lead Free
Lead Free
Length
5.21mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
1W
Mount
Through Hole
Number of Channels
1
Package Quantity
1000
Packaging
Bulk
Polarity
N-CHANNEL
Power Dissipation
1W
Rds On Max
25R
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Turn-Off Delay Time
15ns
Turn-On Delay Time
10ns
Weight
0.016oz
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Microchip DN2540N3-G Datasheet
Download the complete datasheet for Microchip DN2540N3-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

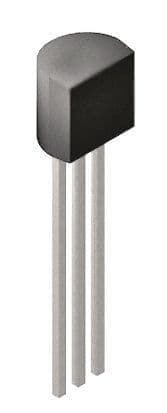

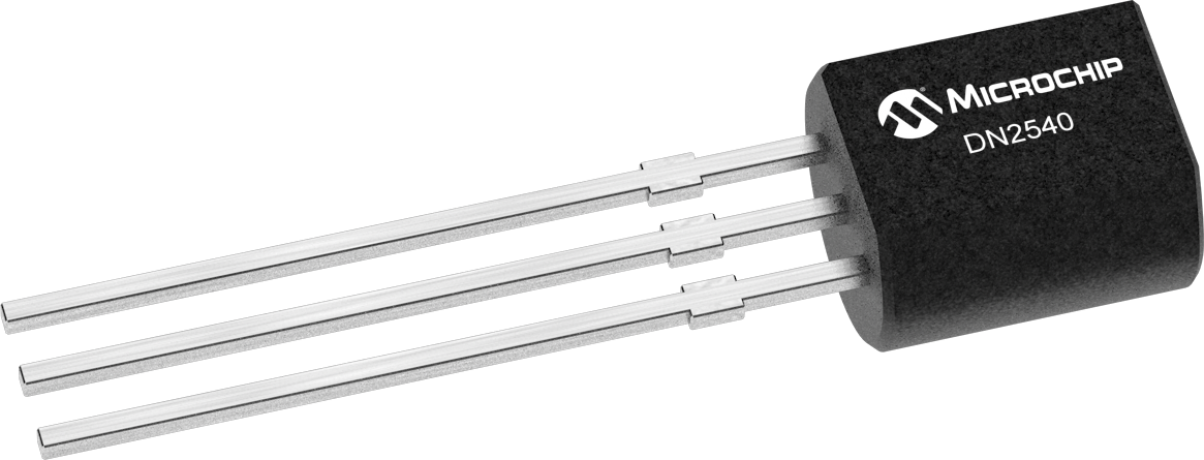

Product Images
