16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 6KB of program memory and 256B of RAM. Equipped with multiple peripherals including I2C, SPI, UART, and 4 PWM channels, it supports through-hole mounting in a PDIP28 package. Operating voltage ranges from 4.5V to 5.5V, with an operating temperature range of -40°C to 85°C.
Frequency30MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F1010-30I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
6KB
Frequency
30MHz
Height
3.43mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Length
35.18mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
6
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
2
Number of UART Channels
1
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F1010-30I/SP Datasheet
Download the complete datasheet for Microchip DSPIC30F1010-30I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

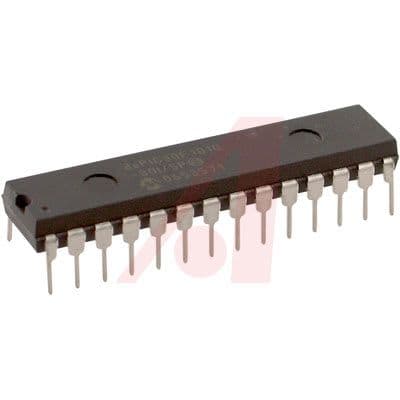

Product Images
