16-bit dsPIC RISC microcontroller featuring 12KB FLASH memory and 512B RAM. Operates at up to 40MHz with an internal oscillator, supporting I2C, SPI, and UART interfaces. Includes 6 ADC channels, 6 PWM channels, and 3 timers/counters. Packaged in a 28-pin DIP for through-hole mounting, with a 2.5V to 5.5V supply voltage range and operating temperatures from -40°C to 85°C.
Frequency40MHz
PackageDIP
Current36mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F2010-20I/SP technical specifications.
General
Address Bus Width
16b
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Height
0.15inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Through Hole
Number of ADC Channels
6
Number of I/Os
20
Number of I2C Channels
1
Number of Programmable I/O
20
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Supply Current
36mA
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2010-20I/SP Datasheet
Download the complete datasheet for Microchip DSPIC30F2010-20I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

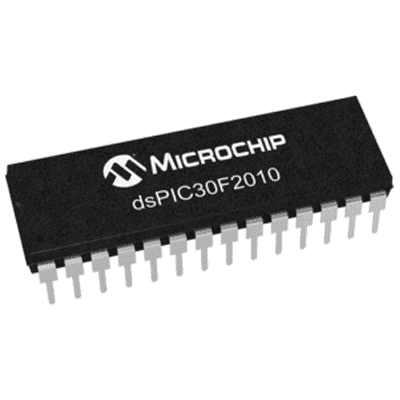

Product Images
