Microchip
DSPIC30F2010-30I/MMG
Digital Signal Processors & Controllers - DSP, DSC 16bit Signal Cntrlr Lead Free Package
Frequency30MHz
PackageQFN
Quick Jump:
Technical Specifications
Microchip DSPIC30F2010-30I/MMG technical specifications.
General
Package/Case
QFN
Data Bus Width
16b
Interface
I2C, SPI, UART
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Number of I/Os
20
Number of Programmable I/O
20
Number of Timers/Counters
3
Operating Supply Voltage
5.5V
Package Quantity
61
Packaging
Rail/Tube
RAM Size
512B
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2010-30I/MMG Datasheet
Download the complete datasheet for Microchip DSPIC30F2010-30I/MMG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

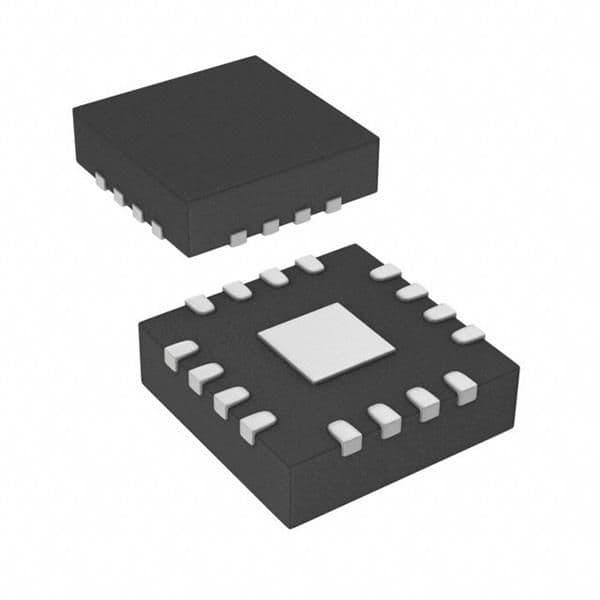

Product Images
