16-bit Digital Signal Controller (DSC) MCU featuring a dsPIC core, operating at up to 30MHz with 12KB FLASH memory and 512B RAM. This surface-mount SOIC package offers 20 programmable I/O pins, 6 ADC channels, 6 PWM channels, and multiple communication interfaces including I2C, SPI, and UART. Designed for a wide operating temperature range of -40°C to 85°C and supply voltages from 2.5V to 5.5V, it includes integrated peripherals like a watchdog timer and brown-out detect.
Frequency30MHz
PackageSOIC
Current36mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2010-30I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Height
2.35mm
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
17.9mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
6
Number of I/Os
20
Number of I2C Channels
1
Number of Programmable I/O
20
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Supply Current
36mA
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2010-30I/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F2010-30I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

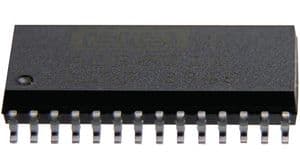

Product Images
