16-bit RISC digital signal processor featuring a dsPIC core architecture, operating at up to 20MHz. This surface mount microcontroller offers 12KB of FLASH memory and 512B of RAM, with support for I2C, SPI, and UART/USART interfaces. Integrated peripherals include Brown-out Detect/Reset, POR, PWM, and a Watchdog Timer. The VQFN package is RoHS compliant and designed for operation between -40°C and 125°C.
Frequency20MHz
PackageVQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2010T-20E/MM technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Power Dissipation
1W
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Programmable I/O
20
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2010T-20E/MM Datasheet
Download the complete datasheet for Microchip DSPIC30F2010T-20E/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

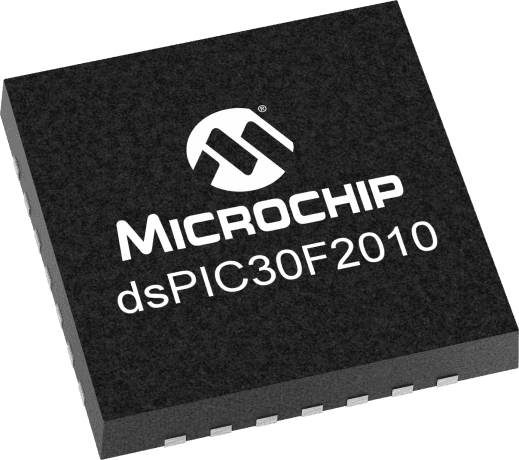

Product Images
