16-bit dsPIC RISC microcontroller featuring 12KB FLASH memory and 512B RAM. Operates at up to 40MHz with integrated I2C, SPI, UART, and USART interfaces. Includes 20 programmable I/O pins, 3 timers/counters, and peripherals such as PWM, WDT, POR, and Brown-out Detect. Surface mountable in a 28-pin SOIC package, suitable for operation between -40°C and 85°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2010T-30I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Interface
I2C, SPI, UART, USART
Lead Free
Contains Lead
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1W
Memory Size
12KB
Memory Type
FLASH,
Mount
Surface Mount
Number of Programmable I/O
20
Number of Timers/Counters
3
Operating Supply Voltage
5.5V
Oscillator Type
Internal
Package Quantity
1600
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
512B
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2010T-30I/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F2010T-30I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

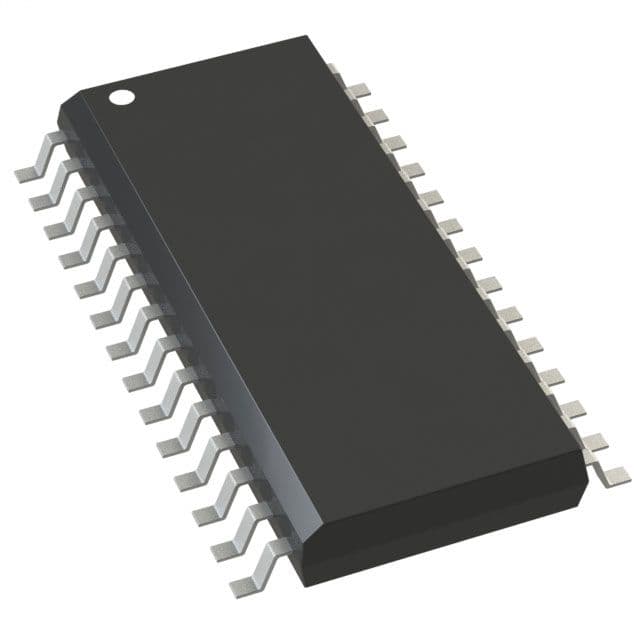

Product Images
