16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This surface-mount device offers 12KB of FLASH memory and 1KB of RAM, with 12 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART interfaces, 8 ADC channels, 3 timers/counters, and a watchdog timer. Designed for a supply voltage range of 2.5V to 5.5V, it operates from -40°C to 85°C and is RoHS compliant.
Frequency20MHz
PackageSOIC
Current37mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F2011-20I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
8
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
42
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Supply Current
37mA
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2011-20I/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F2011-20I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

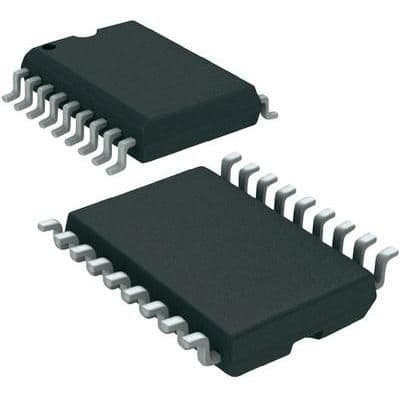

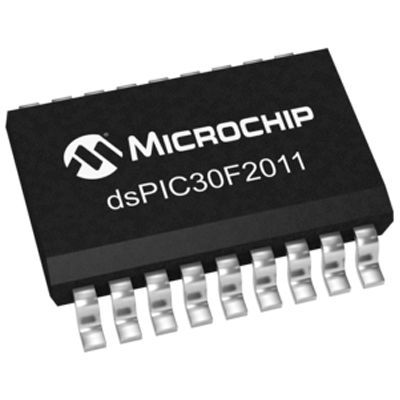

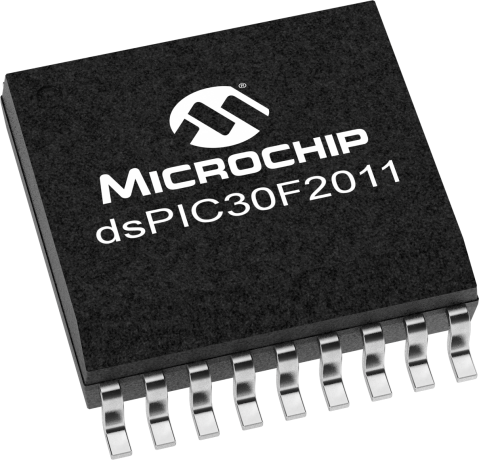

Product Images
