16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 12KB of program memory and 512B of RAM. Integrated peripherals include I2C, SPI, UART, USART, LIN, IrDA interfaces, 4 PWM channels, and 3 timers/counters. Designed for through-hole mounting in a PDIP-28 package, it supports a supply voltage range of 4.5V to 5.5V and operates from -40°C to 85°C.
Frequency30MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F2020-30I/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
12KB
Frequency
30MHz
Height
3.43mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
35.18mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
12KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
16
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
512B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
7.49mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F2020-30I/SP Datasheet
Download the complete datasheet for Microchip DSPIC30F2020-30I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

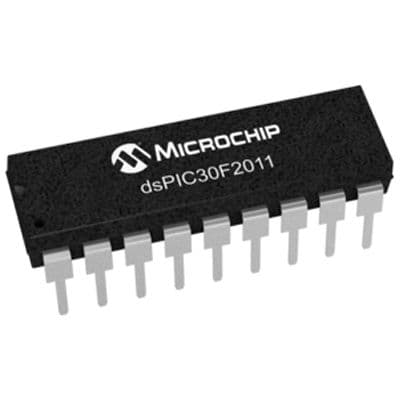

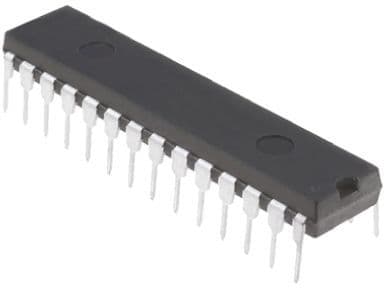

Product Images
