16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 24KB of program memory and 1KB of RAM. Integrated peripherals include I2C, SPI, and UART interfaces, along with 6 PWM channels and 5 timers. Designed for through-hole mounting in a 40-pin PDIP package, it supports a supply voltage range of 2.5V to 5.5V and operates from -40°C to 85°C.
Frequency30MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F3011-30I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
24KB
Frequency
30MHz
Height
0.195inch
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Length
53.21mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
9
Number of Bits
16
Number of I/Os
30
Number of I2C Channels
1
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
10
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
0.58inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3011-30I/P Datasheet
Download the complete datasheet for Microchip DSPIC30F3011-30I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

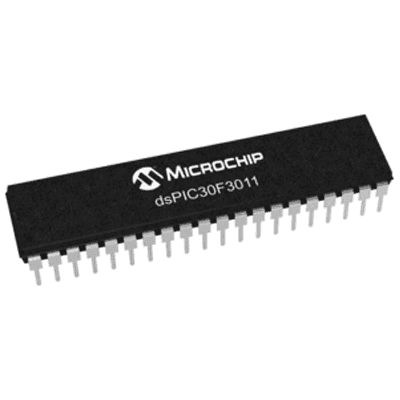

Product Images
