16-bit RISC microcontroller featuring a dsPIC core architecture, operating at up to 20MHz. This FLASH memory microcontroller offers 24KB of program memory and 2KB of RAM. Integrated peripherals include I2C, SPI, and UART interfaces, along with 3 timers/counters and a watchdog timer. The device supports through-hole mounting in a 18-pin PDIP package, with an operating temperature range of -40°C to 85°C and a supply voltage range of 2.5V to 5.5V.
Frequency20MHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F3012-20I/P technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
24KB
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Max Frequency
20MHz
Max Operating Temperature
85°C
Memory Size
24KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Number of I/Os
12
Number of Programmable I/O
12
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
25
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3012-20I/P Datasheet
Download the complete datasheet for Microchip DSPIC30F3012-20I/P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

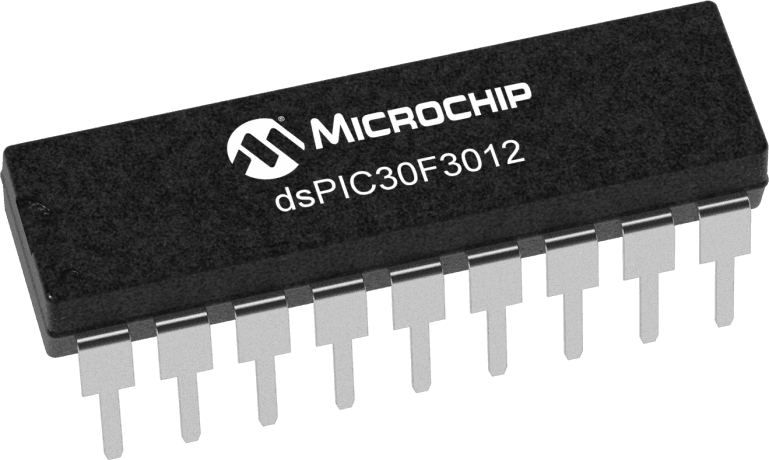

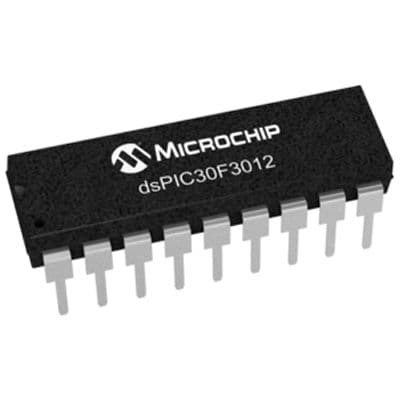

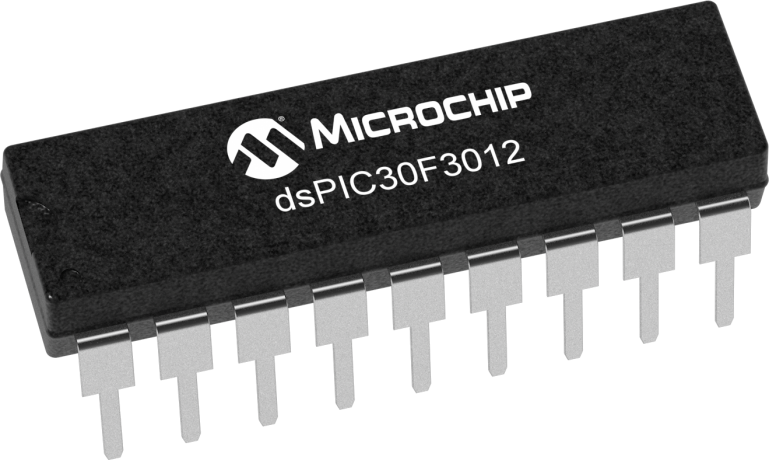

Product Images
