Microchip
DSPIC30F3013-20E/SO
16-BIT, FLASH, 20 MHz, RISC MICROCONTROLLER, PDSO28, 0.300 INCH, PLASTIC, SOIC-28
Frequency20MHz
PackageSOIC W
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F3013-20E/SO technical specifications.
General
Package/Case
SOIC W
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
24KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
30
Number of Timers/Counters
3
Package Quantity
27
Packaging
Rail/Tube
Peripherals
PWM, I2C
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F3013-20E/SO Datasheet
Download the complete datasheet for Microchip DSPIC30F3013-20E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

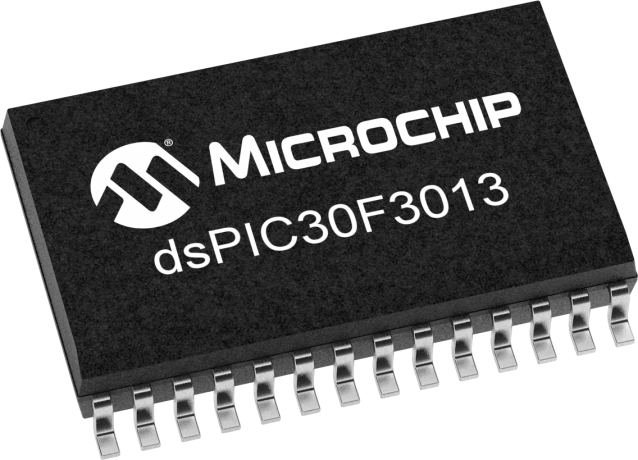

Product Images
