16-bit dsPIC RISC microcontroller featuring 48KB FLASH memory and 2KB RAM, operating at up to 30MHz. This through-hole component offers 20 programmable I/O pins and supports I2C, SPI, UART, USART, and CAN interfaces. Integrated peripherals include 6 PWM channels, 5 timers/counters, and a watchdog timer, with an operating temperature range of -40°C to 85°C. The device is RoHS compliant and supplied in a PDIP28 package.
Frequency30MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC30F4012-30I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
48KB
Frequency
30MHz
Height
0.15inch
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
35.56mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Memory Size
48KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
6
Number of Bits
16
Number of I/Os
20
Number of I2C Channels
1
Number of Programmable I/O
20
Number of PWM Channels
6
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F4012-30I/SP Datasheet
Download the complete datasheet for Microchip DSPIC30F4012-30I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

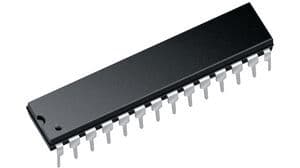

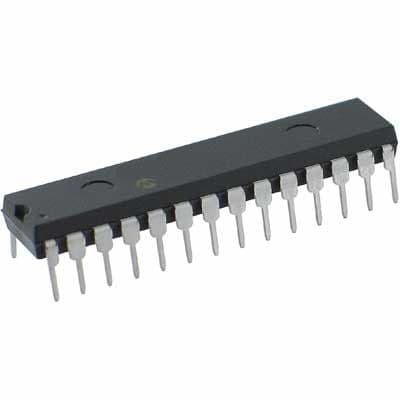

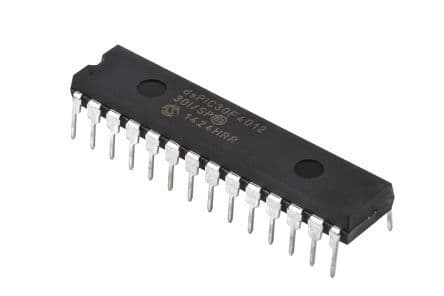

Product Images
