16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 48KB of program memory and 2KB of RAM. It includes 13 analog-to-digital converter channels, 30 programmable I/O pins, and multiple communication interfaces including I2C, SPI, and UART. The device is housed in a 44-pin TQFP package with dimensions of 10mm x 10mm x 1.05mm, supporting surface mount installation. Key peripherals include a watchdog timer, PWM, and brown-out detection.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F4013-20I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
10mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
48KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
13
Number of I2C Channels
1
Number of Programmable I/O
30
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F4013-20I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F4013-20I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

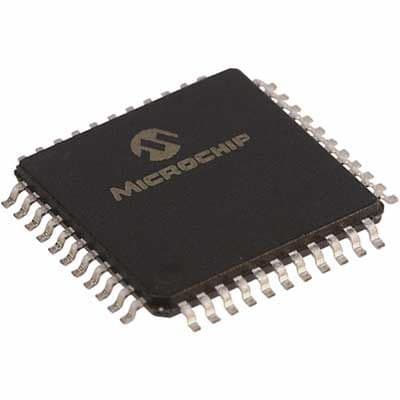

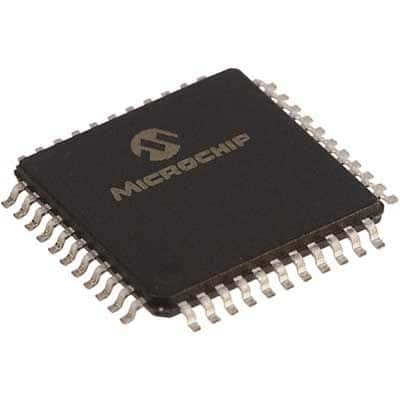

Product Images
