16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory microcontroller offers 66KB of program memory and 4KB of RAM. It supports multiple interfaces including I2C, SPI, UART, USART, and CAN, with 16 ADC channels and 8 PWM channels. Packaged in a TQFP form factor, it is designed for surface mount applications and operates within a temperature range of -40°C to 85°C.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F5013-30I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
66KB
Frequency
30MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
12mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
66KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
4KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F5013-30I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F5013-30I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

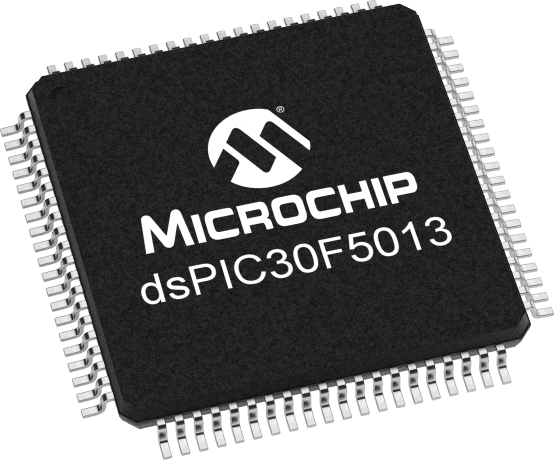

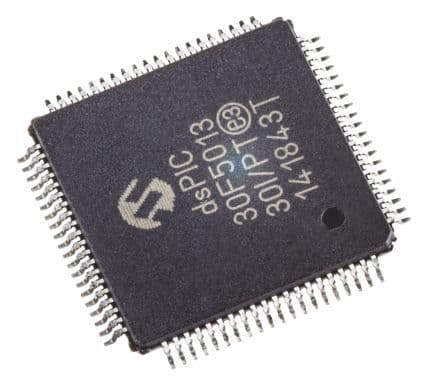

Product Images
