16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This surface-mount device offers 66KB of FLASH program memory and 2KB of RAM. Integrated peripherals include multiple I2C, SPI, and UART interfaces, along with 8 PWM channels and 16 ADC channels. The TQFP package measures 12mm x 12mm with a 1.05mm height, supporting a supply voltage range of 2.5V to 5.5V and an operating temperature range of -40°C to 85°C.
Frequency30MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F5016-30I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
66KB
Frequency
30MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Length
12mm
Max Frequency
30MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
66KB
Memory Type
FLASH,
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F5016-30I/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F5016-30I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

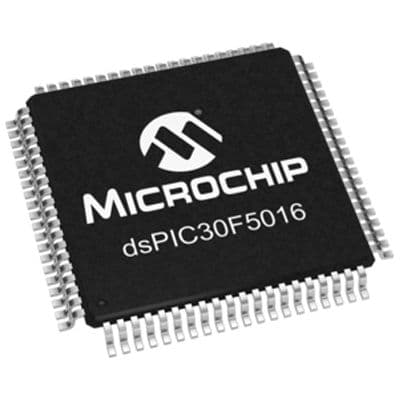

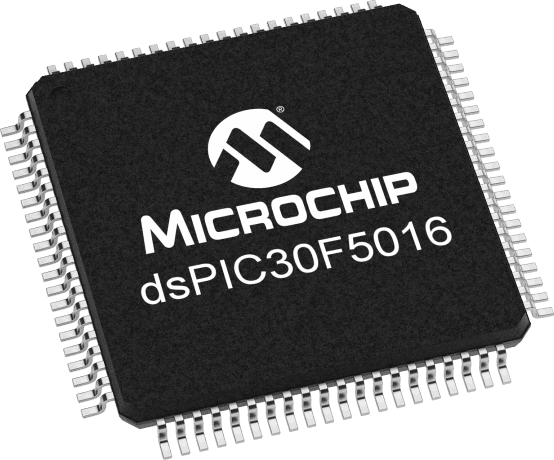

Product Images
