16-bit RISC microcontroller featuring a dsPIC core, operating at up to 30MHz. This FLASH memory device offers 144KB of program memory and 8KB of RAM. It supports multiple interfaces including I2C, SPI, CAN, and UART, with 68 programmable I/Os. The microcontroller is housed in a TQFP package, suitable for surface mounting, and operates within a temperature range of -40°C to 85°C. Integrated peripherals include 8 PWM channels, 5 timers, and a watchdog timer.
Frequency30MHz
PackageTQFP
Current84mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6010A-30I/PF technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Frequency
30MHz
Height
0.041inch
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Length
0.551inch
Max Frequency
30MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
16
Number of Bits
16
Number of I/Os
68
Number of I2C Channels
1
Number of Programmable I/O
68
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC30F
Supply Current
84mA
Termination
SMD/SMT
Watchdog Timer
Yes
Width
0.551inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6010A-30I/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6010A-30I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

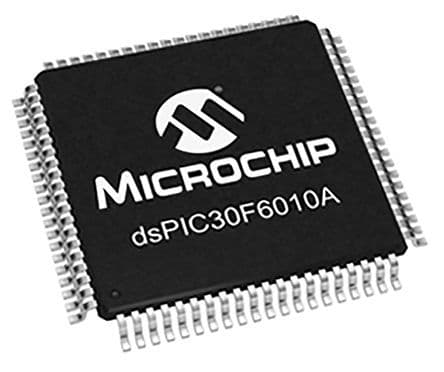

Product Images
