16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory device offers 144KB of program memory and 8KB of RAM, with 52 general-purpose I/O pins and 68 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, CAN, PWM, WDT, LVD, Brown-out Detect/Reset, and POR. Designed for surface mounting in a 64-pin TQFP package, it operates from 3V to 5.5V and supports temperatures from -40°C to 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6012A-20E/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
52
Number of Programmable I/O
68
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD, I2C
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6012A-20E/PF Datasheet
Download the complete datasheet for Microchip DSPIC30F6012A-20E/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

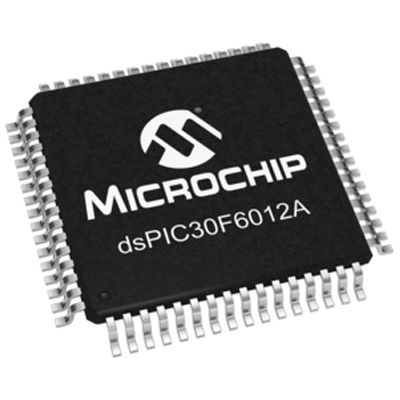

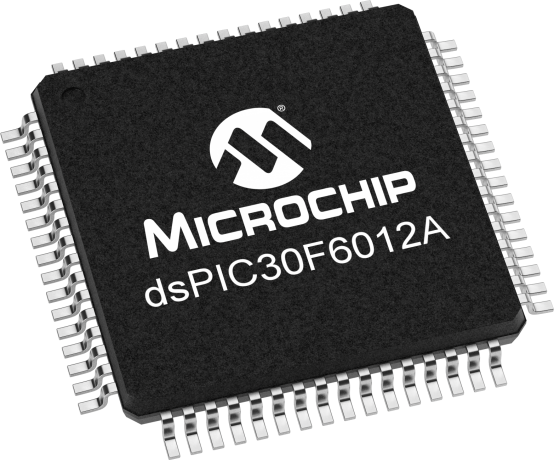

Product Images
