16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This FLASH memory microcontroller offers 144KB of program memory and 8KB of RAM, with 52 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, CAN interfaces, 5 timers/counters, and a watchdog timer. Designed for surface mounting in a 64-pin TQFP package, it operates from 2.7V to 5.8V and supports temperatures from -40°C to 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6012AT-20E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
20MHz
Interface
I2C, SPI, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.8V
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Programmable I/O
52
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, LVD
Radiation Hardening
No
RAM Size
8KB
RoHS Compliant
Yes
Series
dsPIC™ 30F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6012AT-20E/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F6012AT-20E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

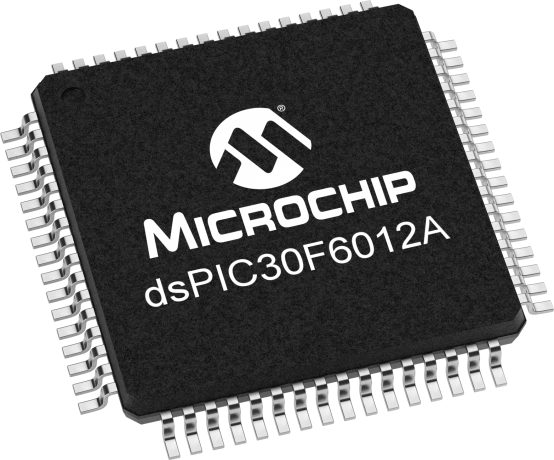

Product Images
