16-bit RISC microcontroller featuring a dsPIC core, operating at up to 20MHz. This surface-mount device offers 144KB of FLASH program memory and 8KB of RAM. Integrated peripherals include I2C, SPI, CAN, UART, USART interfaces, 5 timers/counters, and a watchdog timer. Packaged in a 64-pin TQFP, it supports a supply voltage range of 2.5V to 5.5V and operates from -40°C to 125°C.
Frequency20MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC30F6015-20E/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
144KB
Frequency
20MHz
Interface
I2C, SPI, CAN, UART, USART
Lead Free
Lead Free
Max Frequency
20MHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
144KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of I/Os
52
Number of Programmable I/O
52
Number of Timers/Counters
5
Package Quantity
160
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DSPIC
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC30F6015-20E/PT Datasheet
Download the complete datasheet for Microchip DSPIC30F6015-20E/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

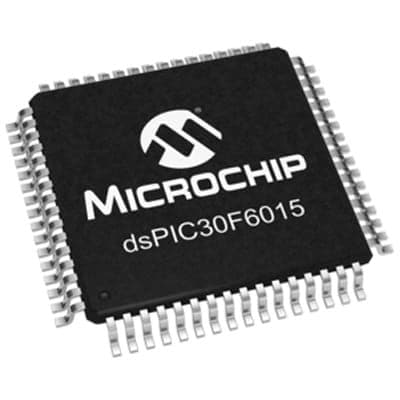

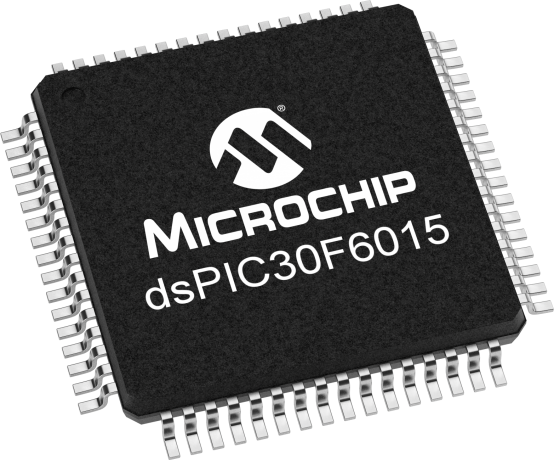

Product Images
