16-bit dsPIC microcontroller featuring 70MHz operation and 32KB FLASH memory. This MCU offers 21 programmable I/O pins, 6 PWM channels, and 6 ADC channels. Integrated peripherals include I2C, SPI, UART, and a watchdog timer. Packaged in a 28-pin SSOP with lead-free construction, it operates from 2.95V to 3.6V.
Frequency70MHz
PackageSSOP
Quick Jump:
Technical Specifications
Microchip DSPIC33EP32MC202-I/SS technical specifications.
General
Package/Case
SSOP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
70MHz
Height
1.85mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
10.5mm
Max Frequency
70MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.95V
Number of ADC Channels
6
Number of I2C Channels
2
Number of Programmable I/O
21
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Watchdog Timer
Yes
Width
5.6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP32MC202-I/SS Datasheet
Download the complete datasheet for Microchip DSPIC33EP32MC202-I/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

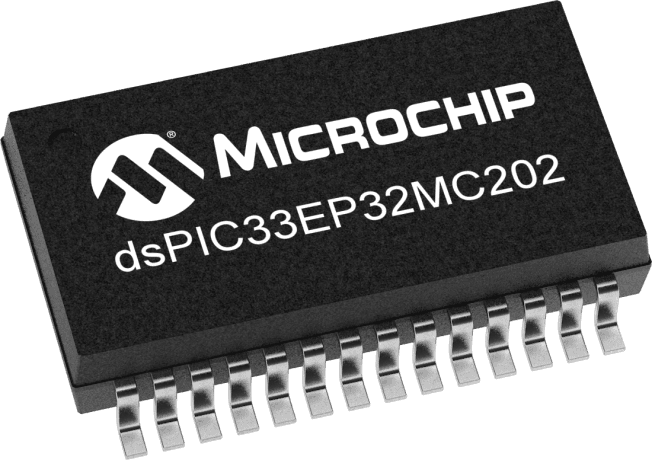

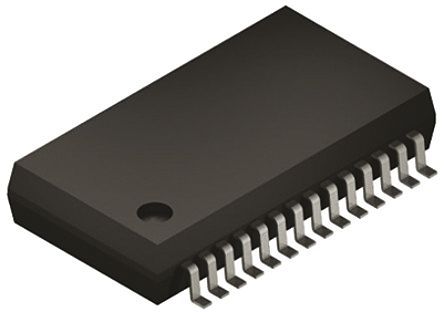

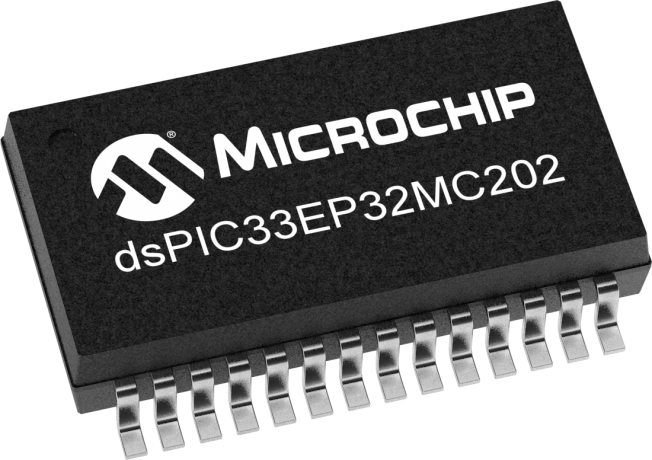

Product Images
