16-bit dsPIC microcontroller featuring 32KB FLASH memory and 4KB RAM. Operates at up to 70MHz with a 3.3V supply voltage, supporting a wide temperature range of -40°C to 85°C. Offers 35 programmable I/Os, including 2x I2C, 2x SPI, and 2x UART interfaces. Includes 9 ADC channels, 6 PWM channels, and 5 timers/counters for versatile application development. Packaged in a 44-TQFP surface-mount format.
Frequency70MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip dsPIC33EP32MC204-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
70MHz
Height
1.05mm
Interface
I2C, SPI, UART, IrDA, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
70MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
9
Number of I/Os
35
Number of I2C Channels
2
Number of Programmable I/O
35
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip dsPIC33EP32MC204-I/PT Datasheet
Download the complete datasheet for Microchip dsPIC33EP32MC204-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

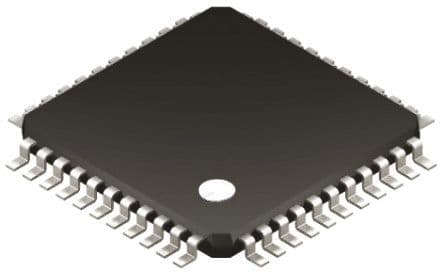

Product Images
