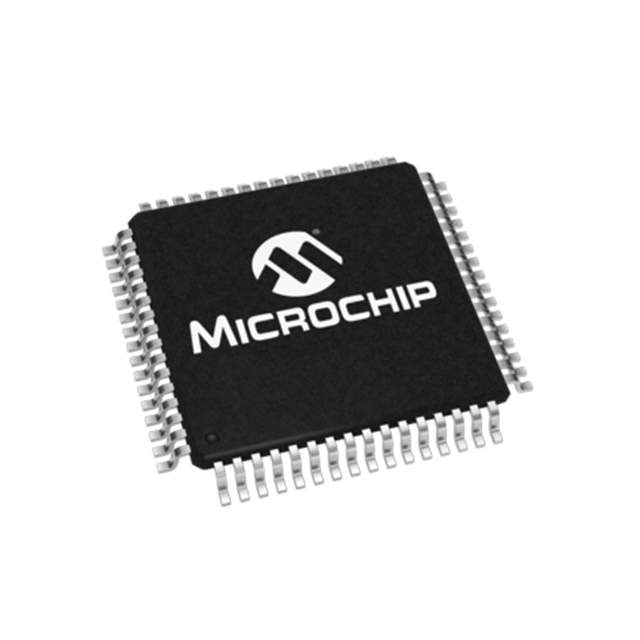

16-bit dsPIC™ 33EP digital signal processor (DSP) microcontroller featuring 512KB FLASH memory and 48KB RAM. Operates at a maximum frequency of 60MHz with a 16-bit address and data bus. Offers extensive connectivity with I2C, SPI, CAN, UART, IrDA, USART, LIN, and USB interfaces. Includes 16 ADC channels, 53 programmable I/Os, 6 PWM channels, and 5 timers. Packaged in a 10mm x 10mm TQFP surface mount case, this lead-free component operates from 3V to 3.6V and is RoHS compliant.
Frequency60MHz
PackageTQFP
Current16mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EP512GP506-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
512KB
Height
1.05mm
Interface
I2C, SPI, CAN, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
10mm
Max Frequency
60MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
512KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
16
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
6
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Number of USB Channels
1
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Supply Current
16mA
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP512GP506-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33EP512GP506-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
