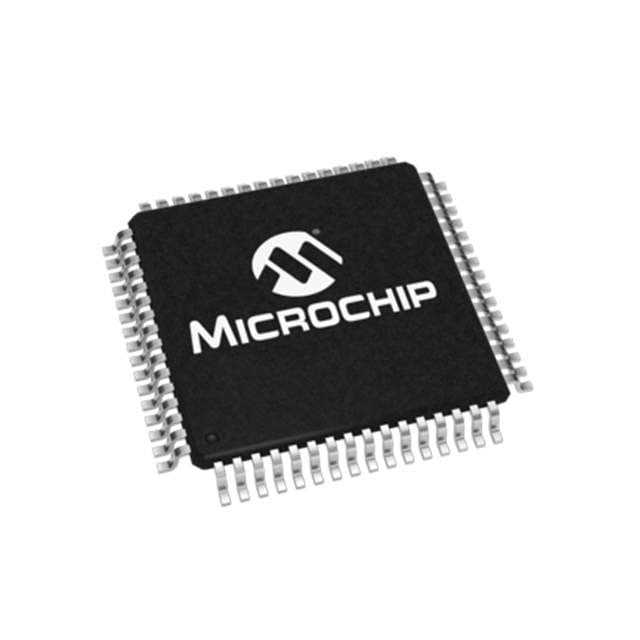

The DSPIC33EP512MC806-E/PT is a high-performance microcontroller from Microchip, featuring a 60MHz 16-bit dsPIC core architecture. This device boasts 512KB of FLASH memory and supports a wide range of interfaces, including I2C, SPI, CAN, IrDA, UART, USART, and LIN. Operating within a temperature range of -40°C to 125°C, the microcontroller is powered by a voltage supply between 2.95V and 3.6V. With 53 programmable I/O pins and 9 timers/counters, this device offers a robust set of features. It is available in a TQFP package and meets the requirements of the RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip DSPIC33EP512MC806-E/PT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Microchip DSPIC33EP512MC806-E/PT technical specifications.
| Package/Case | TQFP |
| Core Architecture | dsPIC |
| Data Bus Width | 16b |
| Frequency | 60MHz |
| Interface | I2C, SPI, CAN, IrDA, UART, USART, LIN |
| Max Frequency | 60MHz |
| Max Operating Temperature | 125°C |
| Memory Size | 512KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.95V |
| Number of Programmable I/O | 53 |
| Number of Timers/Counters | 9 |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 52KB |
| RoHS Compliant | Yes |
| Watchdog Timer | Yes |
| RoHS | Compliant |
