16-bit dsPIC™ microcontroller featuring 64KB FLASH memory and 8KB RAM. Surface mount TQFP package with 53 I/Os, supporting I2C, SPI, IrDA, and UART/USART interfaces. Operates at up to 1MHz with 2 PWM channels and 5 timers/counters. Wide operating temperature range of -40°C to 85°C and supply voltage from 3V to 3.6V. Includes integrated peripherals like Brown-out Detect/Reset, POR, and WDT.
Frequency1MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EP64GS506-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
64KB
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
1MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
53
Number of I2C Channels
2
Number of PWM Channels
2
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Oscillator Type
Internal
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
RAM Size
8KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EP
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EP64GS506-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33EP64GS506-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

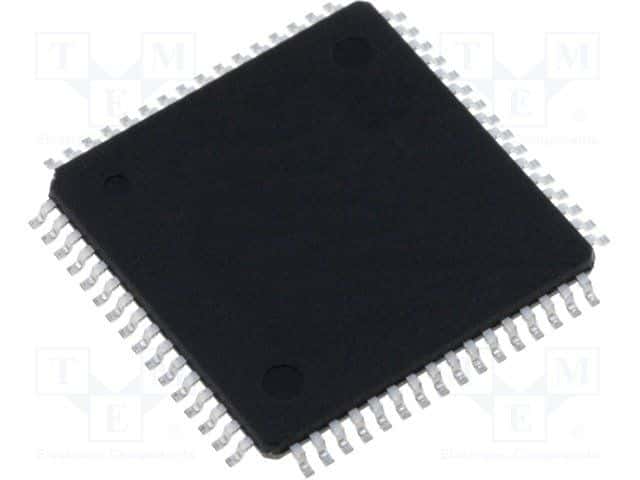

Product Images
