16-bit dsPIC™ 33EV microcontroller featuring 256KB FLASH memory and 16KB RAM. Operates at a maximum frequency of 7.37MHz with a supply voltage range of 4.5V to 5.5V. Offers 36 ADC channels, 53 I/Os, and integrated peripherals including I2C, SPI, CAN, UART, and PWM. Packaged in a TQFP surface mount case, this RoHS compliant component is designed for operation between -40°C and 85°C.
Frequency7.37MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33EV256GM106-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
256KB
Height
1.05mm
Interface
I2C, SPI, CAN, UART, IrDA, USART
Lead Free
Lead Free
Length
10mm
Max Frequency
7.37MHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of ADC Channels
36
Number of I/Os
53
Number of I2C Channels
1
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
5V
Oscillator Type
Internal
Package Quantity
160
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33EV, Functional Safety (FuSa)
Weight
0.01272oz
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33EV256GM106-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33EV256GM106-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

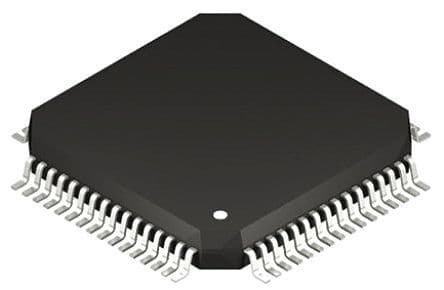

Product Images
