16-bit dsPIC microcontroller featuring 6KB FLASH memory and 256B RAM. Operates at up to 40MHz with a 3.3V supply voltage, supporting a temperature range of -40°C to 85°C. Offers 13 programmable I/O pins and interfaces including I2C, SPI, UART, USART, IrDA, and USB. Includes 6 ADC channels, 2 PWM channels, and 2 timers, with integrated watchdog timer and brown-out detection. Packaged in a lead-free SOIC case.
Frequency40MHz
PackageSOIC
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ06GS001-I/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
6KB
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Length
11.55mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
6
Number of I/Os
13
Number of I2C Channels
1
Number of Programmable I/O
13
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
2
Number of USB Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ06GS001-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ06GS001-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

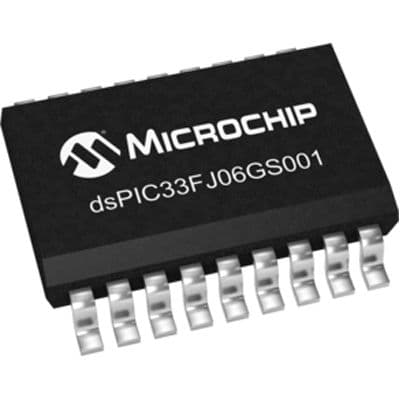

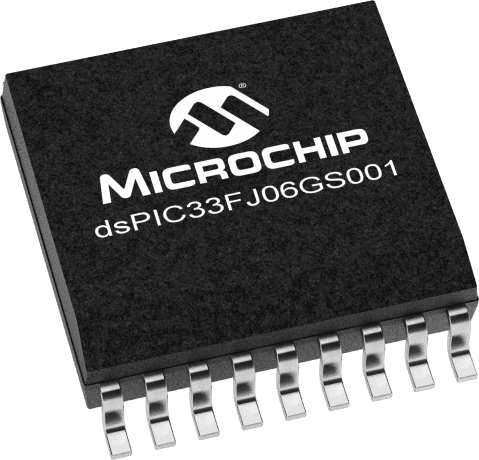

Product Images
