16-bit dsPIC™ digital signal processor featuring a 40MHz core frequency. This microcontroller offers 6KB of FLASH memory and 256B of RAM, supporting I2C, SPI, IrDA, UART, and USART interfaces. Designed for surface mounting in a 28-pin SOIC package, it operates from a 3V to 3.6V supply voltage with an extended temperature range of -40°C to 125°C. Integrated peripherals include a watchdog timer, PWM, and brown-out detection.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ06GS102-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Max Frequency
40MHz
Max Operating Temperature
125°C
Max Supply Voltage
3.6V
Memory Size
6KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
21
Number of Timers/Counters
3
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
RoHS Compliant
Yes
Series
Automotive, AEC-Q100, dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ06GS102-E/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ06GS102-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

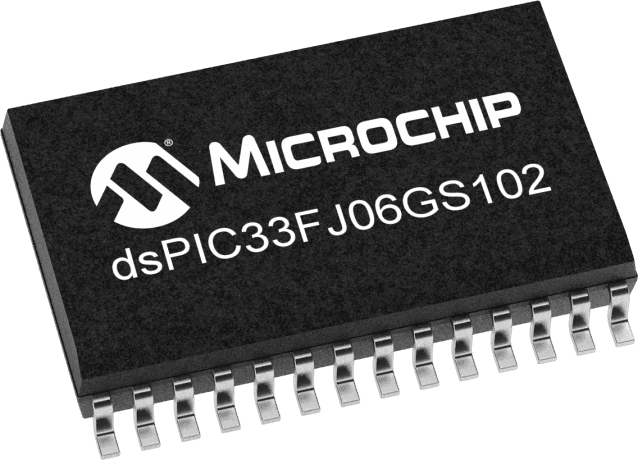

Product Images
