16-bit digital signal processor (DSP) microcontroller featuring a dsPIC core architecture operating at up to 40MHz. This component offers 9KB of FLASH program memory and 1KB of RAM, with 21 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USART, IrDA, PWM, WDT, Brown-out Detect/Reset, and POR. It supports an operating supply voltage of 3.3V, with a range of 3V to 3.6V, and operates within a temperature range of -40°C to 85°C. Available in a SOIC package.
Frequency40MHz
PackageSOIC
Current25mA
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ09GS302-I/SO technical specifications.
General
Address Bus Width
16b
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
9KB
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
9KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of ADC Channels
8
Number of I/Os
21
Number of Programmable I/O
21
Number of Timers/Counters
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, I2C
Radiation Hardening
No
RAM Size
1KB
Reach SVHC Compliant
No
Series
dsPIC™ 33F
Supply Current
25mA
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ09GS302-I/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ09GS302-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

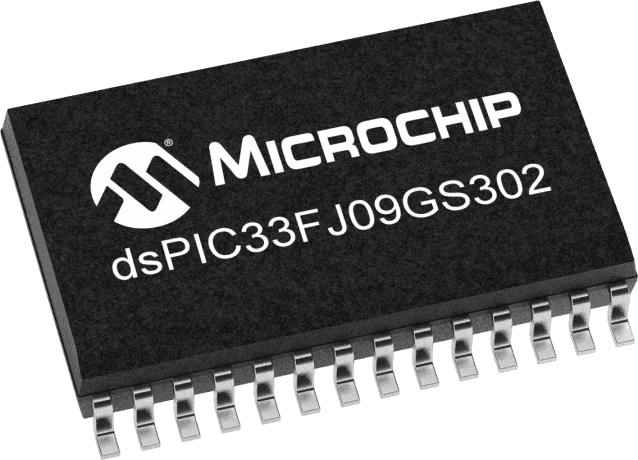

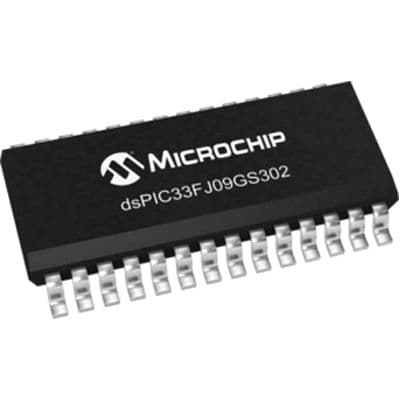

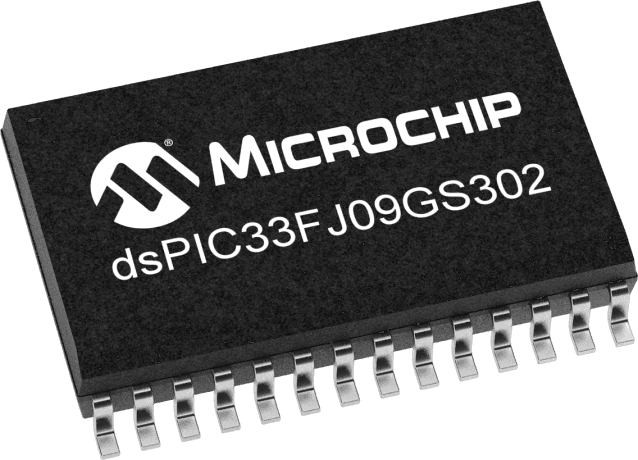

Product Images
