16-bit dsPIC microcontroller featuring 128KB FLASH and 16KB RAM. Operates at up to 40MHz with a 3.3V supply voltage (3V-3.6V range). Offers 53 programmable I/O pins and supports I2C, SPI, IrDA, UART, USART, and CAN interfaces. Includes 9 timers/counters, PWM, WDT, DMA, and POR peripherals. Packaged in a 64-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128GP706AT-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of Programmable I/O
53
Number of Timers/Counters
9
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
1200
Packaging
Tape and Reel
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128GP706AT-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128GP706AT-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

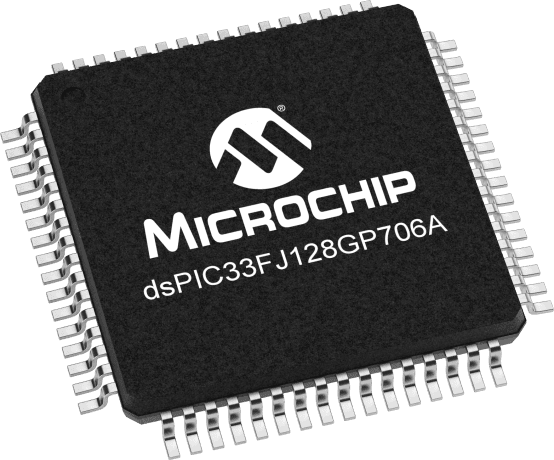

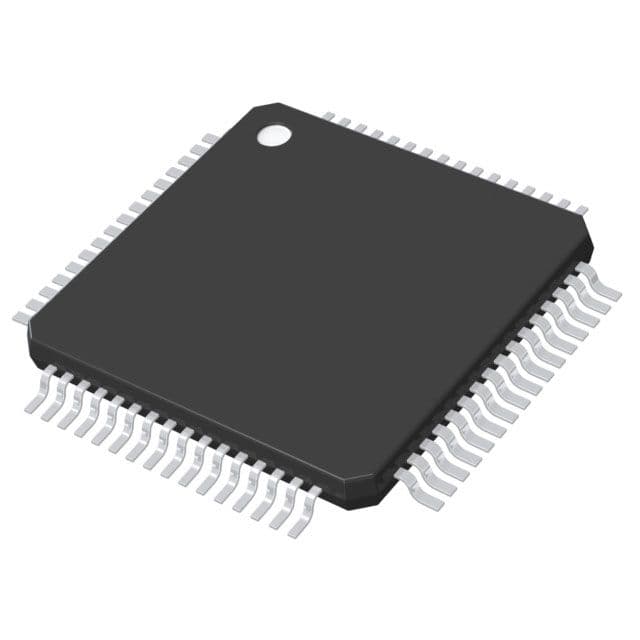

Product Images
