16-bit Digital Signal Controller (DSC) featuring a dsPIC core, operating at up to 40MHz with 128KB of FLASH memory and 16KB of RAM. This surface-mount SOIC package offers 21 programmable I/O pins and supports multiple interfaces including I2C, SPI, CAN, IrDA, UART, USART, and LIN. Integrated peripherals include a watchdog timer, PWM, DMA, Brown-out Detect/Reset, and POR. Operating voltage ranges from 3V to 3.6V, with an operating temperature range of -40°C to 125°C.
Frequency40MHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128GP802-E/SO technical specifications.
General
Package/Case
SOIC
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Height
2.35mm
Interface
I2C, SPI, CAN, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
17.9mm
Max Frequency
40MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
27
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DSPIC
Watchdog Timer
Yes
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128GP802-E/SO Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128GP802-E/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

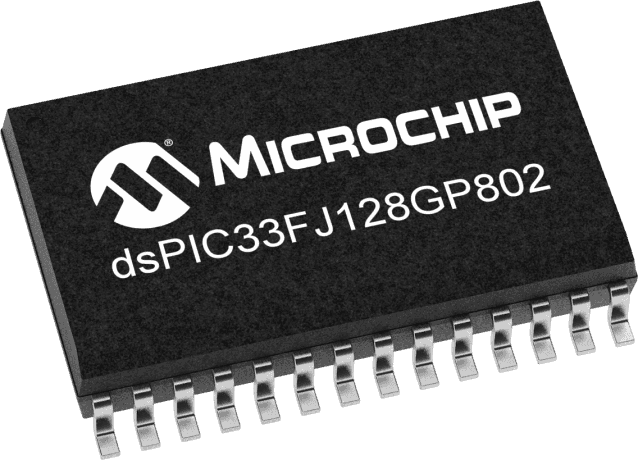

Product Images
