16-bit dsPIC microcontroller featuring 128KB FLASH memory and 16KB RAM. Operates at up to 40MHz with a 3V to 3.6V supply voltage range. Offers 53 programmable I/Os, 32 ADC channels, and 8 PWM channels. Includes multiple communication interfaces such as I2C, SPI, UART, USART, CAN, and IrDA. Packaged in a 64-pin TQFP for surface mounting, with an operating temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128MC706A-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART, CAN
Lead Free
Lead Free
Length
10mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of ADC Channels
32
Number of I/Os
53
Number of I2C Channels
2
Number of Programmable I/O
53
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
Series
dsPIC™ 33F
Watchdog Timer
Yes
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128MC706A-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128MC706A-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

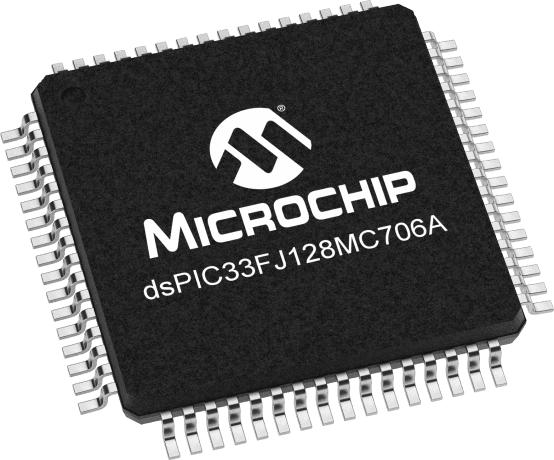

Product Images
