16-bit dsPIC microcontroller featuring 128KB FLASH memory and 16KB RAM, operating at up to 40MHz. Surface mountable in a 6x6mm QFN package with 0.88mm height. Includes multiple interfaces such as I2C, SPI, CAN, IrDA, UART, USART, and LIN. Equipped with 21 programmable I/Os, 5 timers/counters, and integrated peripherals including PWM and WDT. Operates from a 3V to 3.6V supply voltage, with a temperature range of -40°C to 85°C.
Frequency40MHz
PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ128MC802-I/MM technical specifications.
General
Package/Case
QFN
Core Architecture
dsPIC
Data Bus Width
16b
Density
128KB
Frequency
40MHz
Height
0.88mm
Interface
I2C, SPI, CAN, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
6mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
61
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC33F
Watchdog Timer
Yes
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ128MC802-I/MM Datasheet
Download the complete datasheet for Microchip DSPIC33FJ128MC802-I/MM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

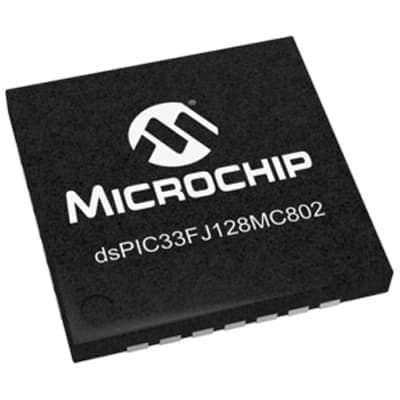

Product Images
