16-bit dsPIC microcontroller featuring 16KB FLASH memory and 2KB RAM. Operates at up to 40MHz with internal oscillator. Offers 21 programmable I/Os, 8 ADC channels, 8 PWM channels, and multiple communication interfaces including I2C, SPI, and UART. Packaged in a 28-pin PDIP, this RoHS compliant component supports both surface mount and through-hole mounting.
Frequency40MHz
PackagePDIP
MountingSurface Mount, Through Hole
Quick Jump:
Technical Specifications

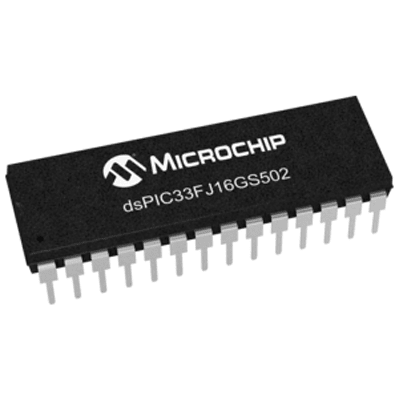

Microchip DSPIC33FJ16GS502-I/SP technical specifications.
General
Package/Case
PDIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
16KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, UART, IrDA, USART, LIN
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
16KB
Memory Type
FLASH,
Min Supply Voltage
3V
Mount
Surface Mount, Through Hole
Number of ADC Channels
8
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of PWM Channels
8
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
15
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC33F
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ16GS502-I/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ16GS502-I/SP to view detailed technical specifications.
