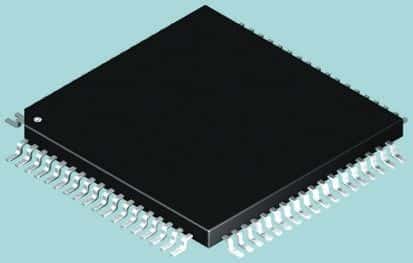

16-bit dsPIC microcontroller featuring 256KB FLASH memory and 30KB RAM. Operates at up to 40MHz with a 16-bit data bus width. Offers 85 programmable I/Os, 24 ADC channels, 9 timers, 8 PWM channels, and multiple communication interfaces including I2C, SPI, UART, CAN, and LIN. Packaged in a 100-pin TQFP (12x12mm, 1.05mm height) for surface mounting. RoHS compliant with an operating voltage range of 3V to 3.6V and an extended temperature range of -40°C to 85°C.
Frequency40MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ256MC710-I/PT technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
256KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, IrDA, UART, USART, CAN, LIN
Lead Free
Lead Free
Length
12mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
256KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Surface Mount
Number of A/D Converters
2
Number of ADC Channels
24
Number of Bits
16
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
8
Number of SPI Channels
2
Number of Timers/Counters
9
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA, I2C
Radiation Hardening
No
RAM Size
30KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC™ 33F
Termination
SMD/SMT
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
