16-bit dsPIC microcontroller featuring 32KB FLASH memory and 4KB RAM. Operates at up to 40MHz with 58 programmable I/O pins. Integrated peripherals include I2C, SPI, UART, USB, IrDA, USART, SCI interfaces, 5 timers/counters, PWM, WDT, Brown-out Detect/Reset, and POR. Internal oscillator and VQFN package. Wide operating temperature range of -40°C to 85°C with a 3V to 3.6V supply voltage.
Frequency40MHz
PackageVQFN
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GS406-I/MR technical specifications.
General
Package/Case
VQFN
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, USB, IrDA, USART, SCI
Max Frequency
40MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Supply Voltage
3V
Number of Programmable I/O
58
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
40
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GS406-I/MR Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GS406-I/MR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

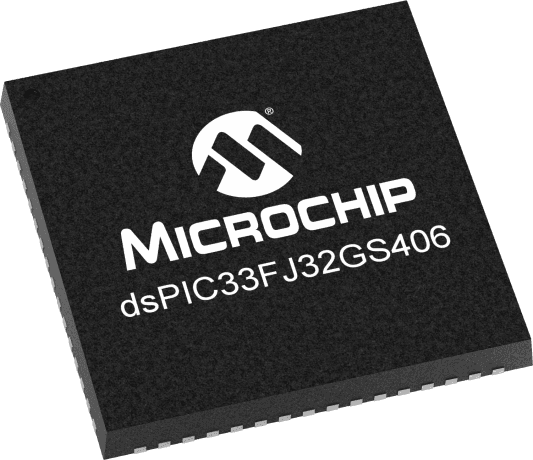

Product Images
