16-bit dsPIC microcontroller featuring 32KB FLASH memory and 4KB RAM. Operates at up to 40MHz with a 3.3V supply voltage (3V-3.6V range). Offers 85 I/O pins, including 58 programmable I/O, and supports I2C, SPI, UART, IrDA, and USART interfaces. Includes 5 timers/counters, internal oscillator, and peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. Packaged in a 100-TQFP tray, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency40MHz
PackageTQFP
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32GS610-I/PF technical specifications.
General
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Frequency
40MHz
Interface
I2C, SPI, UART, IrDA, USART
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of I/Os
85
Number of Programmable I/O
58
Number of Timers/Counters
5
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
RAM Size
4KB
RoHS Compliant
Yes
Series
dsPIC™ 33F
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32GS610-I/PF Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32GS610-I/PF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

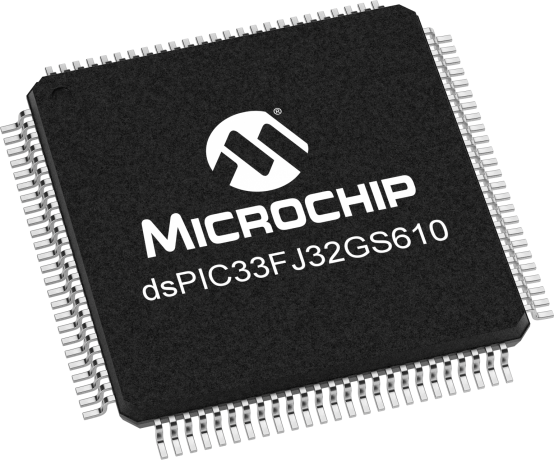

Product Images
