16-bit dsPIC microcontroller featuring a 40MHz core speed and 32KB FLASH memory. This Through Hole mounted device offers 21 programmable I/Os, multiple communication interfaces including I2C, SPI, and UART, and integrated peripherals like POR, PWM, and a watchdog timer. Operating from a 3V to 3.6V supply, it boasts 6 ADC channels and 2KB of RAM, suitable for applications within a -40°C to 85°C temperature range.
Frequency40MHz
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ32MC202-I/SP technical specifications.
General
Package/Case
DIP
Core Architecture
dsPIC
Data Bus Width
16b
Density
32KB
Frequency
40MHz
Height
0.15inch
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
35.56mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Mount
Through Hole
Number of ADC Channels
6
Number of I/Os
21
Number of I2C Channels
1
Number of Programmable I/O
21
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Operating Supply Voltage
3.3V
Package Quantity
15
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
2KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC33F
Termination
Through Hole
Watchdog Timer
Yes
Width
0.295inch
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ32MC202-I/SP Datasheet
Download the complete datasheet for Microchip DSPIC33FJ32MC202-I/SP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

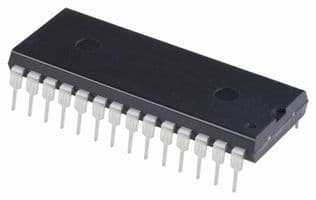

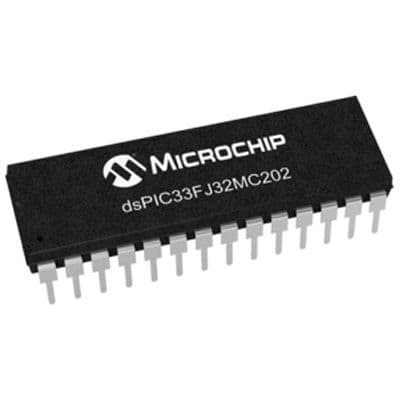

Product Images
