16-bit dsPIC microcontroller featuring 64KB FLASH memory and 9KB RAM, operating at up to 40MHz. This MCU offers 85 programmable I/Os, 24 ADC channels, and 18 PWM channels. Integrated peripherals include I2C, SPI, UART, USB, CAN, IrDA, USART, LIN interfaces, along with Brown-out Detect/Reset, POR, WDT, and DMA. Packaged in a 100-pin TQFP with dimensions of 12mm x 12mm and 1.05mm height, it operates from 3V to 3.6V and is RoHS compliant.
Frequency40MHz
PackageTQFP
Current35mA
Quick Jump:
Technical Specifications
Microchip DSPIC33FJ64GS610-I/PT technical specifications.
General
Address Bus Width
16b
Package/Case
TQFP
Core Architecture
dsPIC
Data Bus Width
16b
Density
64KB
Frequency
40MHz
Height
1.05mm
Interface
I2C, SPI, UART, USB, CAN, IrDA, USART, LIN
Lead Free
Lead Free
Length
12mm
Max Frequency
40MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of ADC Channels
24
Number of I/Os
85
Number of I2C Channels
2
Number of Programmable I/O
85
Number of PWM Channels
18
Number of SPI Channels
2
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
119
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, DMA
Radiation Hardening
No
RAM Size
9KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
dsPIC33F
Supply Current
35mA
Watchdog Timer
Yes
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Microchip DSPIC33FJ64GS610-I/PT Datasheet
Download the complete datasheet for Microchip DSPIC33FJ64GS610-I/PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

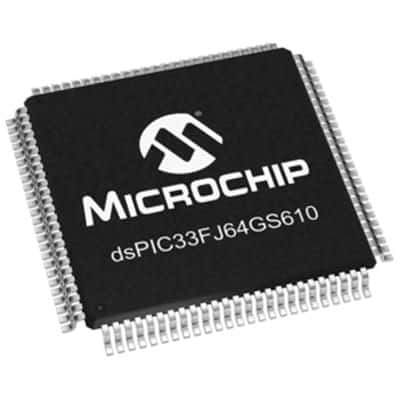

Product Images
