10Mbps Ethernet controller IC, featuring a single channel for local area network connectivity. This surface-mount device utilizes an SPI interface and operates at a 20MHz frequency. Packaged in a 28-pin SOIC (PDSO28) with dimensions of 17.9mm length, 7.5mm width, and 2.05mm height. It supports a supply voltage range of 3.1V to 3.6V, with a nominal operating voltage of 3.3V and a maximum supply current of 180mA. Operating temperature range is -40°C to 85°C.
Frequency20MHz
PackageSOIC
Current180mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ENC28J60-I/SO technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Frequency | 20MHz |
| Height | 2.05mm |
| Interface | SPI |
| Length | 17.9mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 180mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Functions | 1 |
| Operating Supply Current | 160mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 27 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 180mA |
| Supply Voltage-Nom | 3.45V |
| Width | 7.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ENC28J60-I/SO Datasheet
Download the complete datasheet for Microchip ENC28J60-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

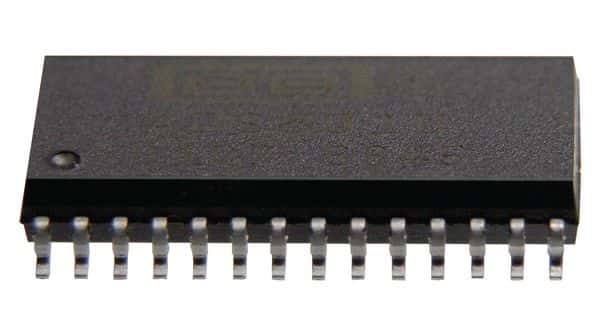

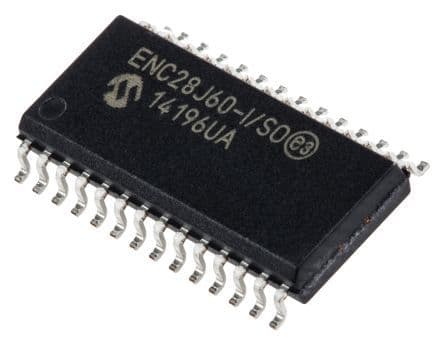

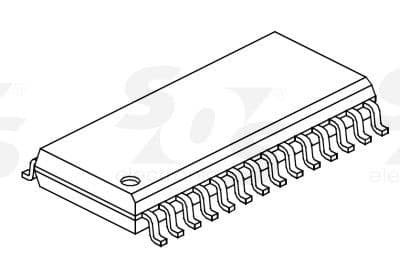

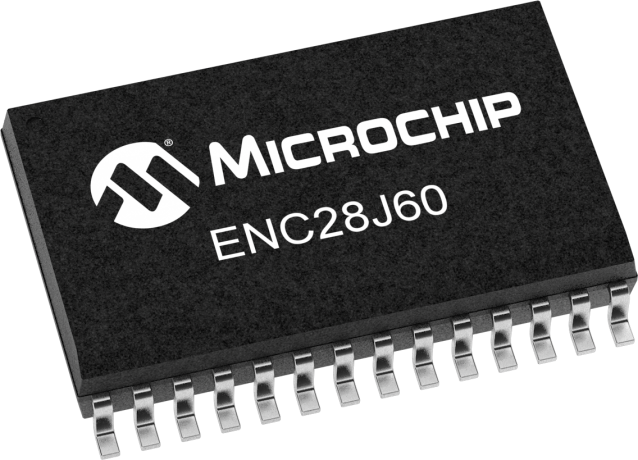

Product Images
