Single-chip Ethernet controller for 10Mbps networks. Features SPI interface, 3.3V operating voltage, and a 28-pin SSOP package. Operates from 0°C to 70°C with a maximum supply voltage of 3.6V. Surface mountable with a typical supply current of 160mA. RoHS compliant and lead-free.
PackageSSOP
Current180mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ENC28J60/SS technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 10Mbps |
| Height | 1.75mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 10.2mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Number of Functions | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 160mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 47 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 180mA |
| Supply Voltage-Nom | 3.45V |
| Weight | 0.080001oz |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ENC28J60/SS Datasheet
Download the complete datasheet for Microchip ENC28J60/SS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

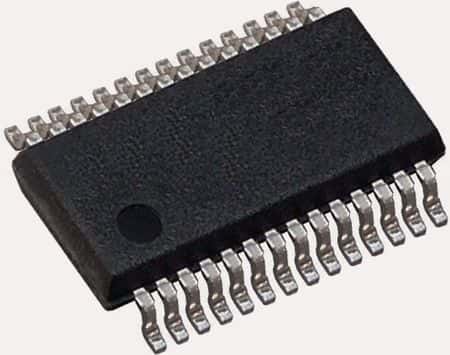

Product Images
