10Mbps Ethernet controller IC, featuring a single channel for local area network connectivity. This interface controller utilizes an SPI communication protocol and is housed in a 28-pin SOIC package for surface mounting. Operating within a voltage range of 3.1V to 3.6V, it offers a typical supply current of 160mA and a maximum of 180mA. Designed for reliability, it operates from -40°C to 85°C and is RoHS compliant and lead-free.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip ENC28J60T-I/SO technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 10Mbps |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 180mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3.1V |
| Mount | Surface Mount |
| Operating Supply Current | 160mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 3.6V |
Compliance
| RoHS | Compliant |
Datasheet
Microchip ENC28J60T-I/SO Datasheet
Download the complete datasheet for Microchip ENC28J60T-I/SO to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

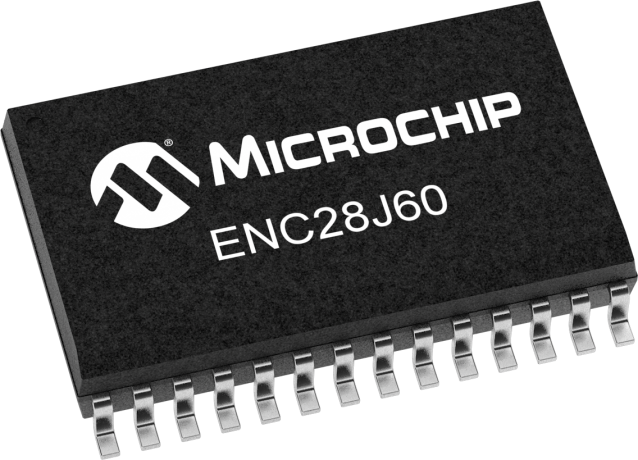

Product Images
