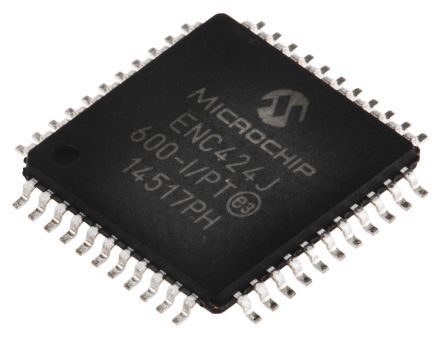

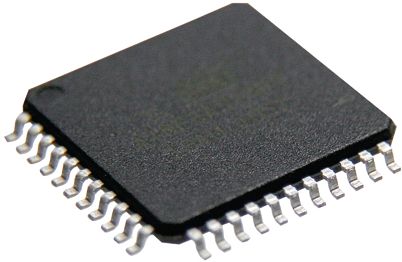

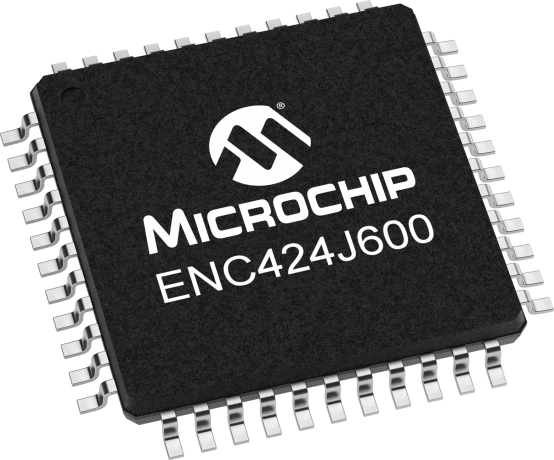

Single-chip Ethernet controller supporting 10Mbps and 100Mbps data rates. Features SPI, Parallel, and Serial interfaces, operating at 3.3V with a 3.6V maximum supply voltage. Packaged in a 44-pin TQFP for surface mounting, this RoHS compliant component offers a 10mm x 10mm x 1mm footprint. It includes one port and one transceiver, with a maximum output current of 8mA and an operating supply current of 96mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip ENC424J600-I/PT datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TQFP |
| Data Rate | 100Mbps |
| Height | 1mm |
| Interface | SPI, Parallel, Serial |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Input Voltage | 3.6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 8mA |
| Max Output Voltage | 3.6V |
| Max Supply Current | 117mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 96mA |
| Operating Supply Voltage | 3.3V |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 117mA |
| Supply Voltage-Nom | 3.6V |
| Termination | SMD/SMT |
| Width | 10mm |
| RoHS | Compliant |
