Surface mount EL lamp driver IC operating from 1.8V to 6.5V. Features a 75kHz frequency and 150uA operating supply current. Housed in an 8-pin MSOP package with dimensions of 2.95mm (L) x 3mm (W) x 0.91mm (H). Suitable for applications within a -25°C to 85°C temperature range.
Frequency75kHz
PackageMSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip HV833MG-G technical specifications.
General
| Package/Case | MSOP |
| Frequency | 75kHz |
| Height | 0.91mm |
| Length | 2.95mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 6.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Segments | 1 |
| Operating Supply Current | 150uA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Weight | 0.004938oz |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip HV833MG-G Datasheet
Download the complete datasheet for Microchip HV833MG-G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

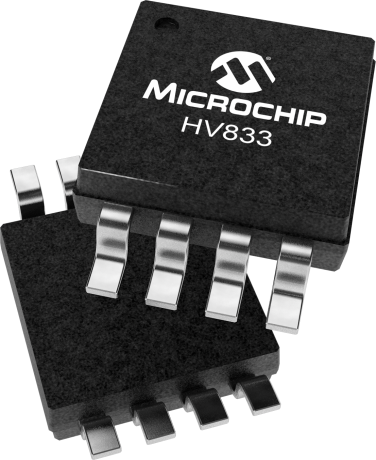

Product Images
