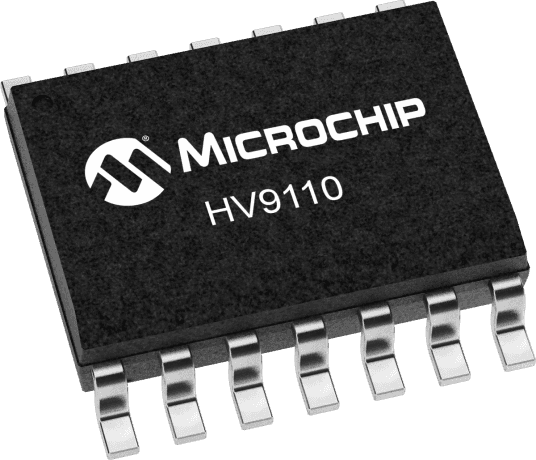

Microchip HV9110NG-G technical specifications.
| Package/Case | SOIC |
| Clock Sync | No |
| Duty Cycle | 49.6% |
| Fall Time | 20ns |
| Max Duty Cycle | 49.6% |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 13.5V |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | -2mA |
| Output Voltage | 4.08V |
| Package Quantity | 53 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Push-Pull |
| Weight | 0.011923oz |
| RoHS | Compliant |
