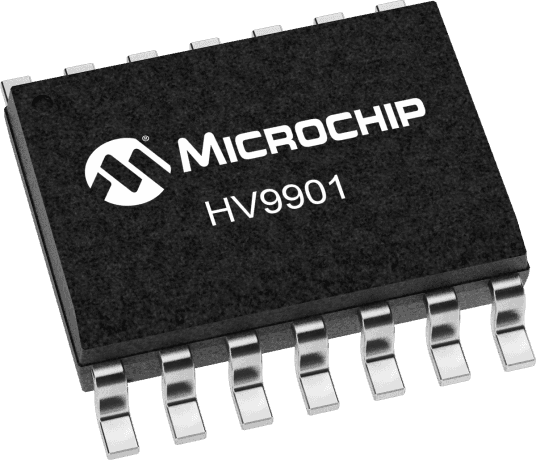

The HV9901NG-G is a single-channel power management IC from Microchip, packaged in a SOIC case and designed for surface mount. It operates over a temperature range of -40°C to 85°C and can handle a maximum power dissipation of 750mW. The device has a maximum supply voltage of 450V and a minimum supply voltage of 10V. It features a fall time of 30ns and a maximum output current of 10mA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip HV9901NG-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Channel Type | Single |
| Fall Time | 30ns |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 750mW |
| Max Supply Voltage | 450V |
| Min Supply Voltage | 10V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Output Current | 10mA |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Supply Current | 2mA |
| Weight | 0.023492oz |
| RoHS | Compliant |
