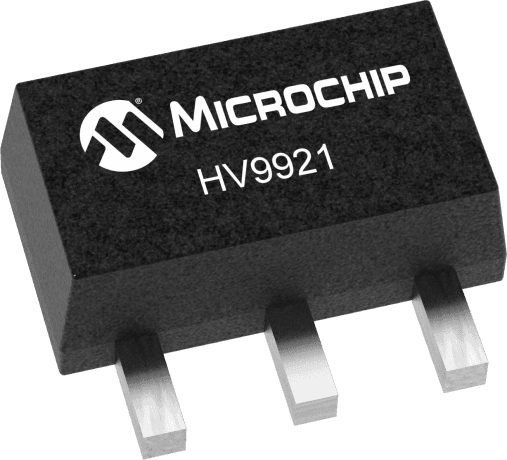

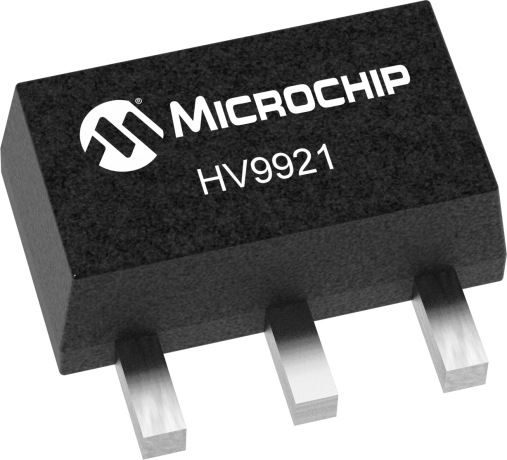

Surface mount LED display driver IC featuring a single channel and output. Operates with AC input voltages from 85V to 265V and DC input voltages from 20V to 400V. Delivers a maximum output current of 20mA and supports a maximum output power of 1.6W. Features a low supply current of 350uA and a maximum supply voltage of 264V. Packaged in SOT-89, this RoHS compliant component is suitable for a wide operating temperature range of -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip HV9921N8-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-89 |
| Current Rating | 20mA |
| Lead Free | Lead Free |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage (DC) | 400V |
| Min Input Voltage (DC) | 20V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Power | 1.6W |
| Max Power Dissipation | 1.6W |
| Max Supply Current | 350uA |
| Max Supply Voltage | 264V |
| Min Supply Voltage | 85V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 20mA |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.6W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 350uA |
| Weight | 0.004603oz |
| RoHS | Compliant |
Download the complete datasheet for Microchip HV9921N8-G to view detailed technical specifications.
