1-Channel Ethernet PHY, 10/100Mbps data rate, supporting full-duplex operation. Features a 48-pin LQFP surface mount package with dimensions of 7mm x 7mm x 1.4mm. Operates with a supply voltage range of 3.135V to 3.465V, with a nominal 3.3V. Maximum supply current is 52mA. This component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
PackageLQFP
Current52mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8001LI technical specifications.
General
Package/Case
LQFP
Data Rate
100Mbps
Height
1.4mm
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
52mA
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Channels
1
Number of Functions
1
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
52mA
Supply Voltage-Nom
3.3V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8001LI Datasheet
Download the complete datasheet for Microchip KSZ8001LI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

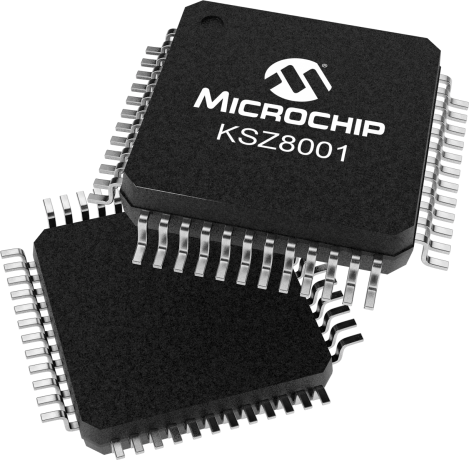

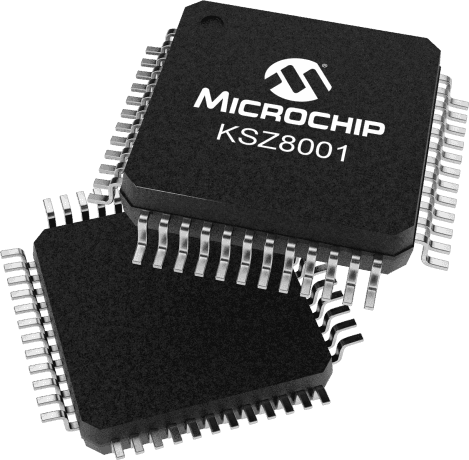

Product Images
