100Mbps Ethernet PHY, single-channel, full-duplex transceiver. Features a 3.3V operating supply voltage with a range of 3.135V to 3.465V. Housed in a 48-pin TQFP surface-mount package measuring 7mm x 7mm x 1mm. Operates within a temperature range of 0°C to 70°C, with a maximum power dissipation of 180mW. This lead-free, RoHS-compliant component is supplied in trays of 250 units.
PackageTQFP
Current58.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041FTL technical specifications.
General
Package/Case
TQFP
Data Rate
100Mbps
Height
1mm
Interface
Ethernet
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
180mW
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Channels
1
Number of Functions
1
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
58.3A
Supply Voltage-Nom
3.465V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8041FTL Datasheet
Download the complete datasheet for Microchip KSZ8041FTL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

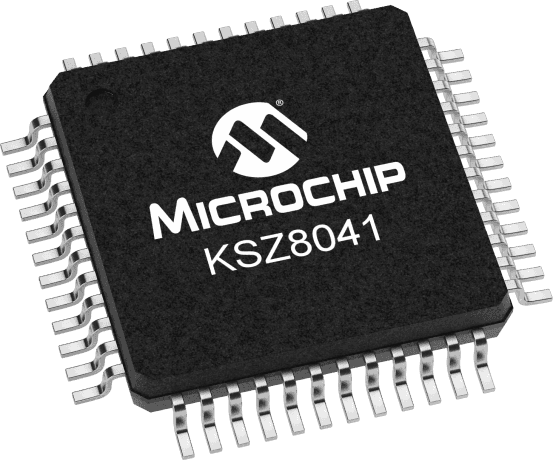

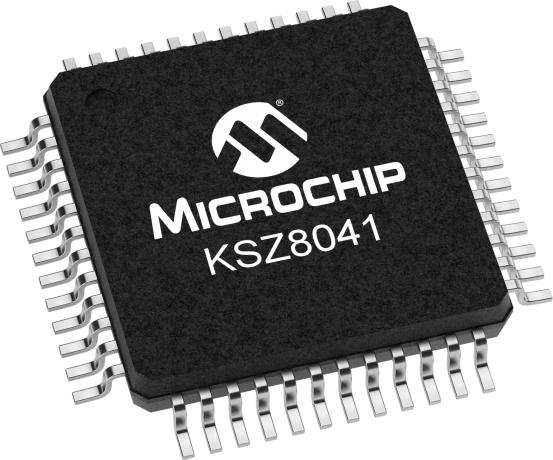

Product Images
