Automotive Ethernet PHY, 1-channel, 10/100Mbps data rate, supporting full duplex operation. This integrated circuit features a 48-pin TQFP package, surface mountable, with dimensions of 7mm (length) x 7mm (width) x 1mm (height). Operates with a 3.3V supply voltage, within a range of 3.135V to 3.465V, and has a maximum power dissipation of 180mW. Extended operating temperature range from -40°C to 85°C, lead-free, and RoHS compliant.
PackageTQFP
Current53mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip KSZ8041FTLI technical specifications.
General
Package/Case
TQFP
Data Rate
100Mbps
Height
1mm
Lead Free
Lead Free
Length
7mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
180mW
Max Supply Voltage
3.465V
Min Supply Voltage
3.135V
Mount
Surface Mount
Number of Channels
1
Number of Functions
1
Number of Transceivers
1
Operating Supply Voltage
3.3V
Package Quantity
250
Packaging
Tray
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
53mA
Supply Voltage-Nom
3.465V
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Microchip KSZ8041FTLI Datasheet
Download the complete datasheet for Microchip KSZ8041FTLI to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

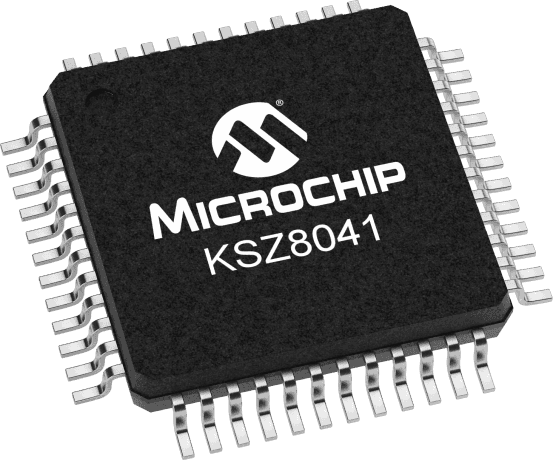

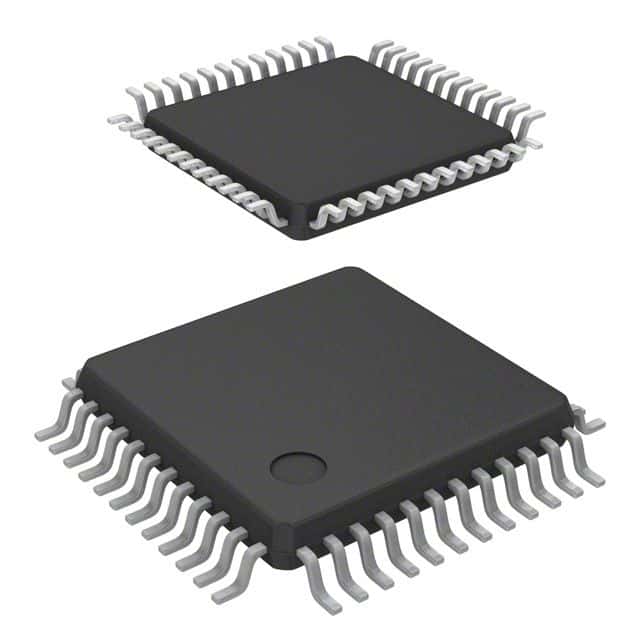

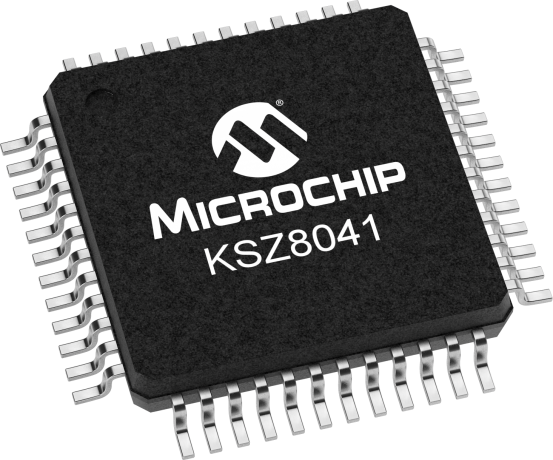

Product Images
